Features:
1. The hydraulic system can be set according to the requirements of the input material.
2. It can effectively prevent dust and dirt from penetrating into the oversized bearing.
3. Long service life and minimal repair and maintenance needs.
4. The safety switch can automatically stop to prevent the machine from starting when the panel is opened, and prevent the staff from being injured. The machine is equipped with an emergency stop button on the body and the control panel.
Specification:
ITEM | UNIT | KDS550 | KDS850 | |
Feeding Size | mm | 580×900 | 880×900 | |
Rotor Diameter | mm | 251 | 251 | |
Rotor Speed | rpm | 90 | 90 | |
Main Motor Power | kw | 18.5~22 | 30 | |
Rotor Knives | pcs | 13 or 26 | 20 or 40 | |
Stator Knives | pcs | 2 | 2 | |
Screen Size | mm | 15~100 | 40~100 | |
Machine Dimensions | mm | 1894×1348×1723 | 1894×1648×1723 | |
Dimensions | A | mm | 1894 | 1894 |
B | mm | 1348 | 1648 | |
C | mm | 580 | 880 | |
mm | 1723 | 1723 | ||
E | mm | 1020 | 1020 | |
F | mm | 620 | 620 | |

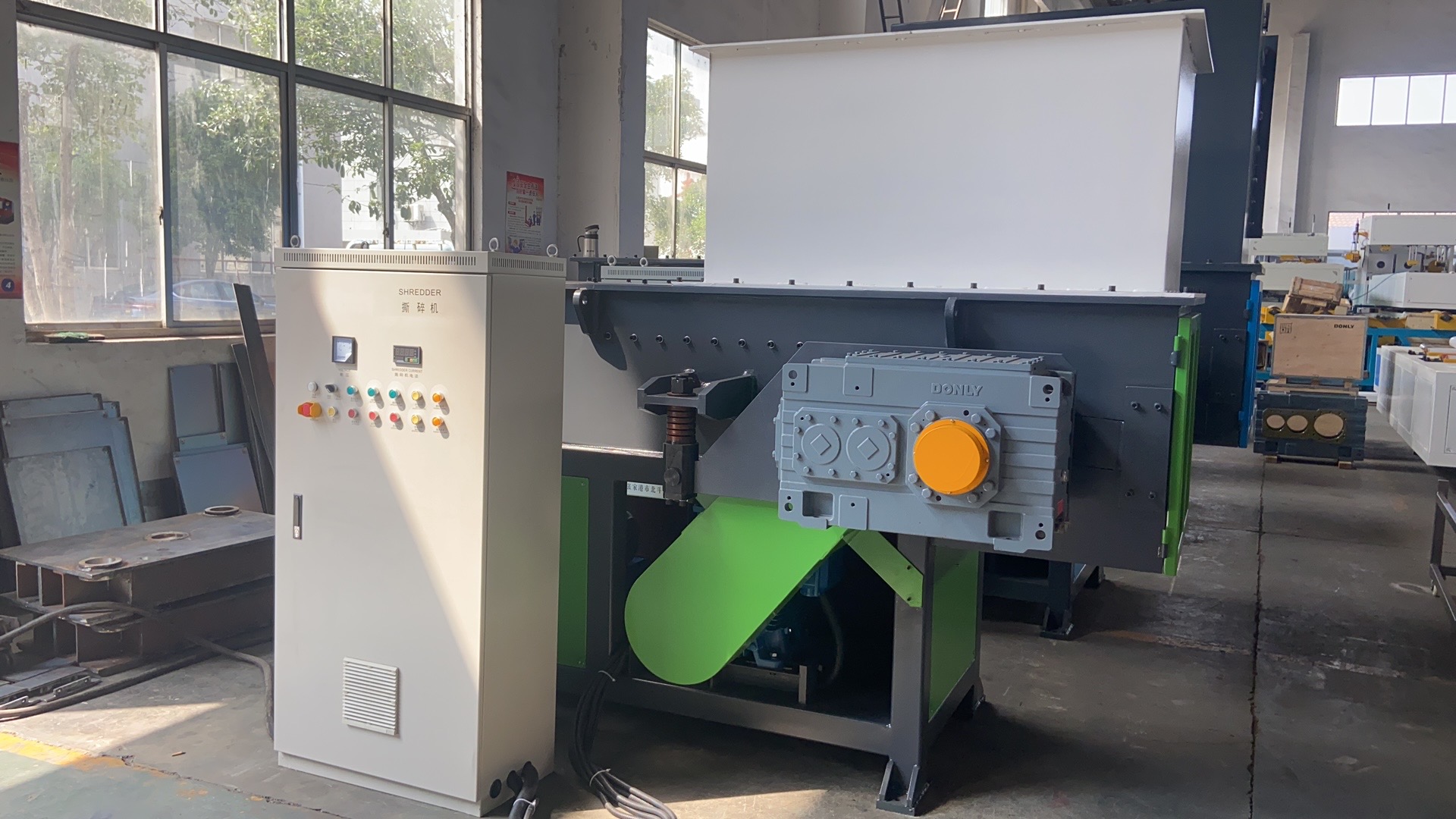

Machine photos:
